Fuzzrite

Four resistors, four capacitors and two transistors (plus the usual hangarounds) and you can build this little circuit.

PCB and stripboard

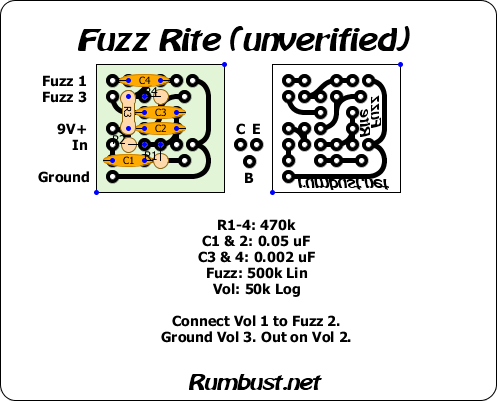

Unconfirmed PCB layout.

Server does not support image manipulation.

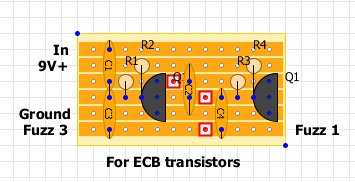

Unconfirmed Stripboard layout. For component values and how to wire the potentiometers see PCB layout above.

Server does not support image manipulation.


Correct schematic - Well claims to be anyway.
Thread with information about different versions of Fuzzrites
